• AL

  • AL

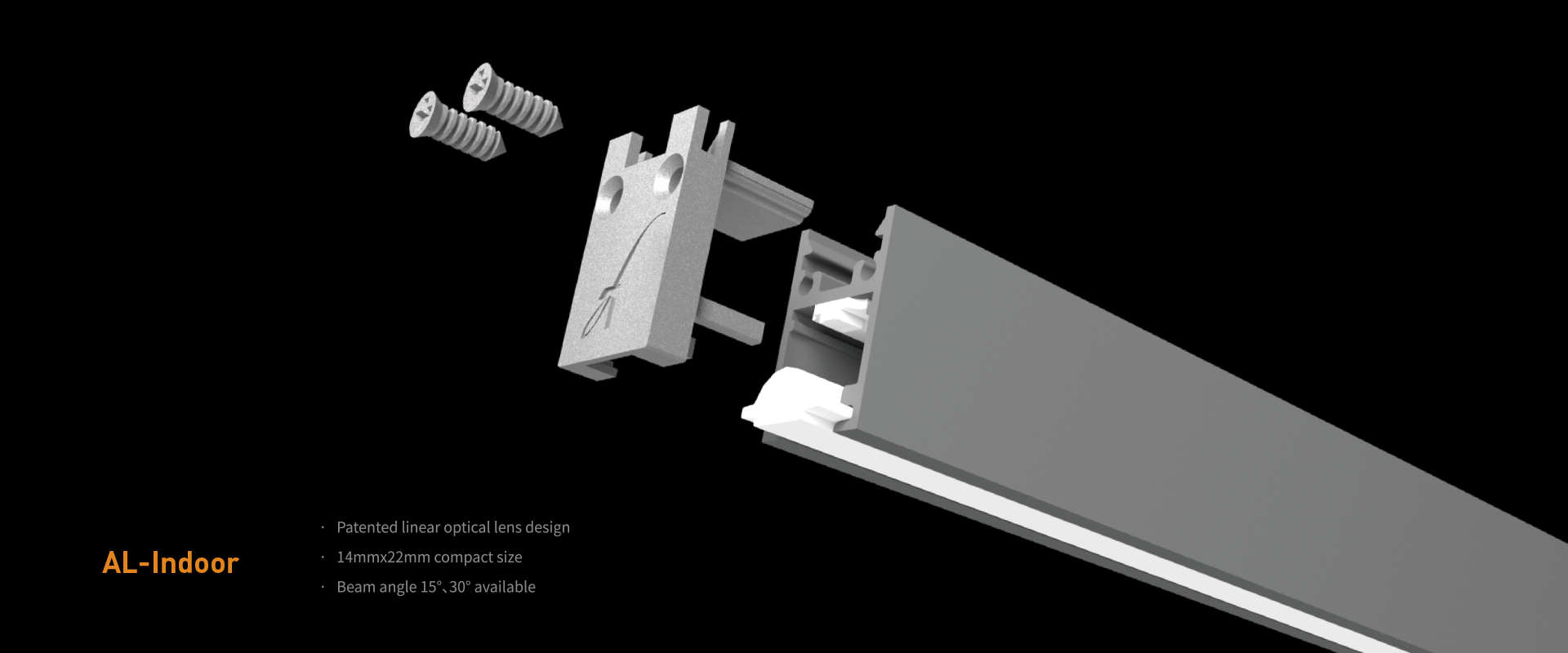

. Patented linear optical lens design

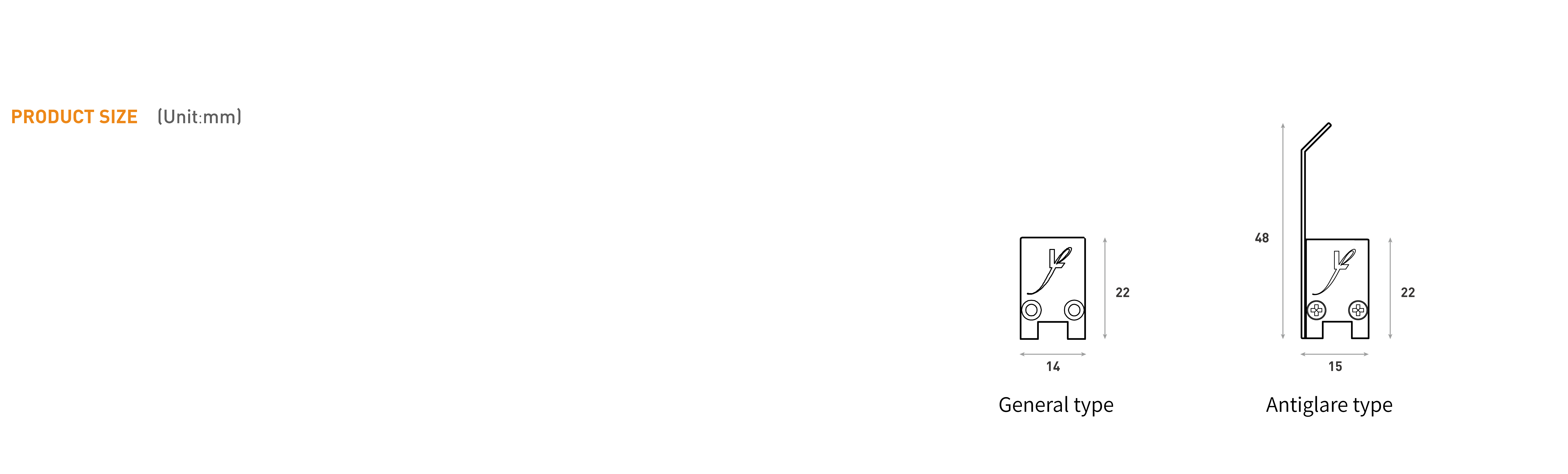

. 14mmx22mm compact size

. Beam angle 15°、30° available


AL

Power18W/M
Angle15°
CCT1800~7500K/RGB
Lumen1260lm/M(@3000K)
Min Cutting Unit63mm(Min)-2963mmMax)

Single color could be customized as 49.7mm per unit
Operating EnvironmentIndoor(IP20),Semi-Outdoor(IP65)


AL

Product parameters

AL

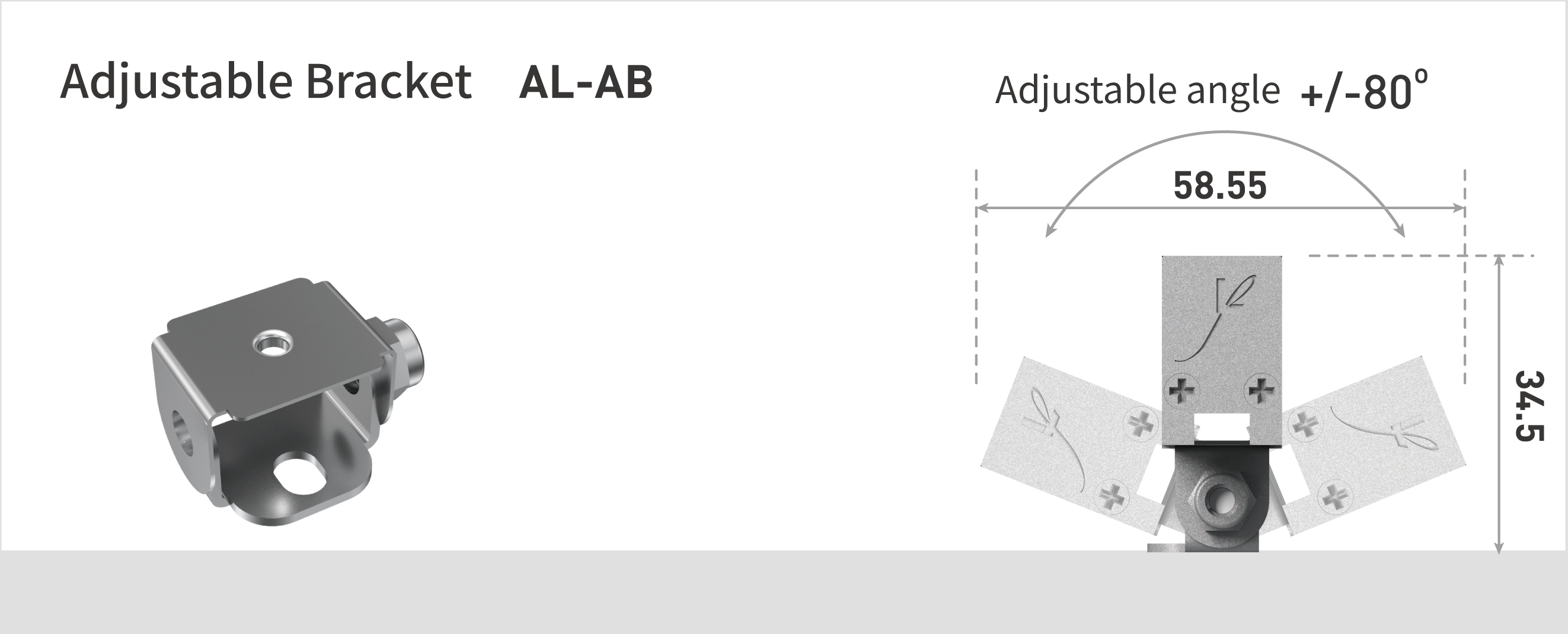

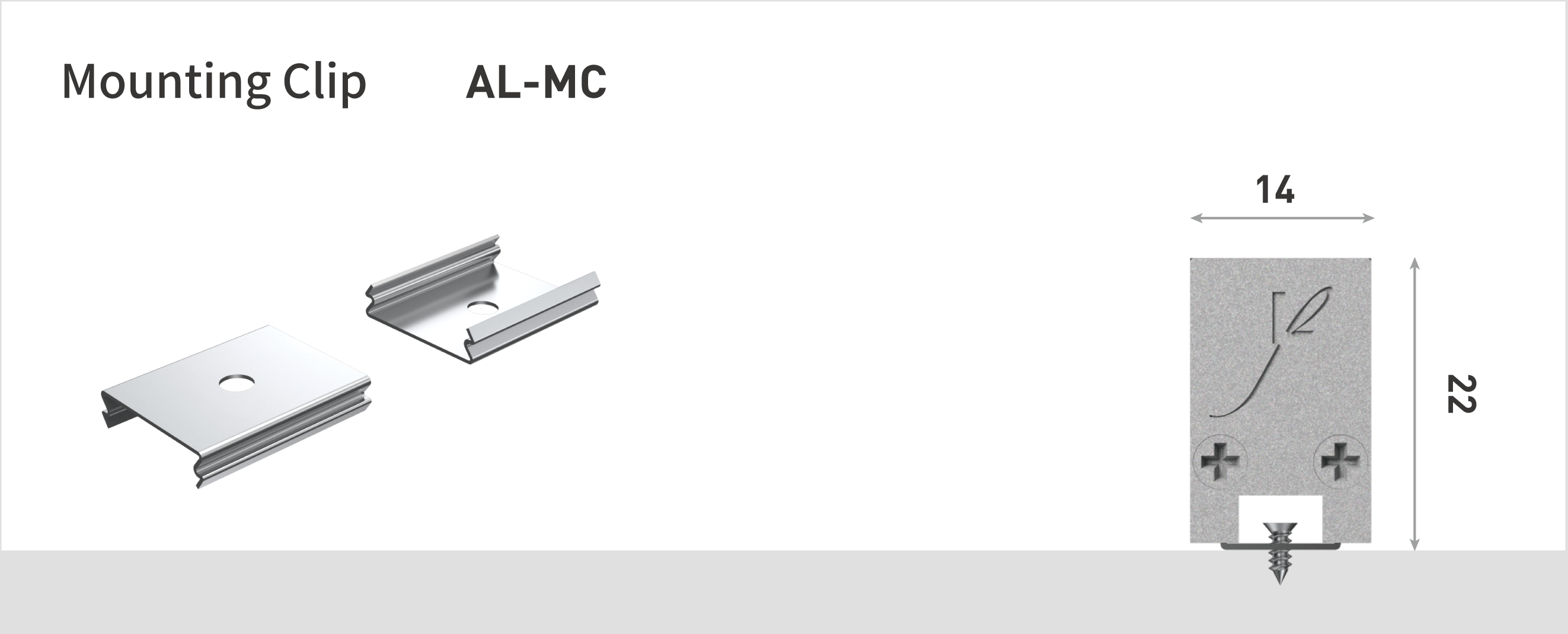

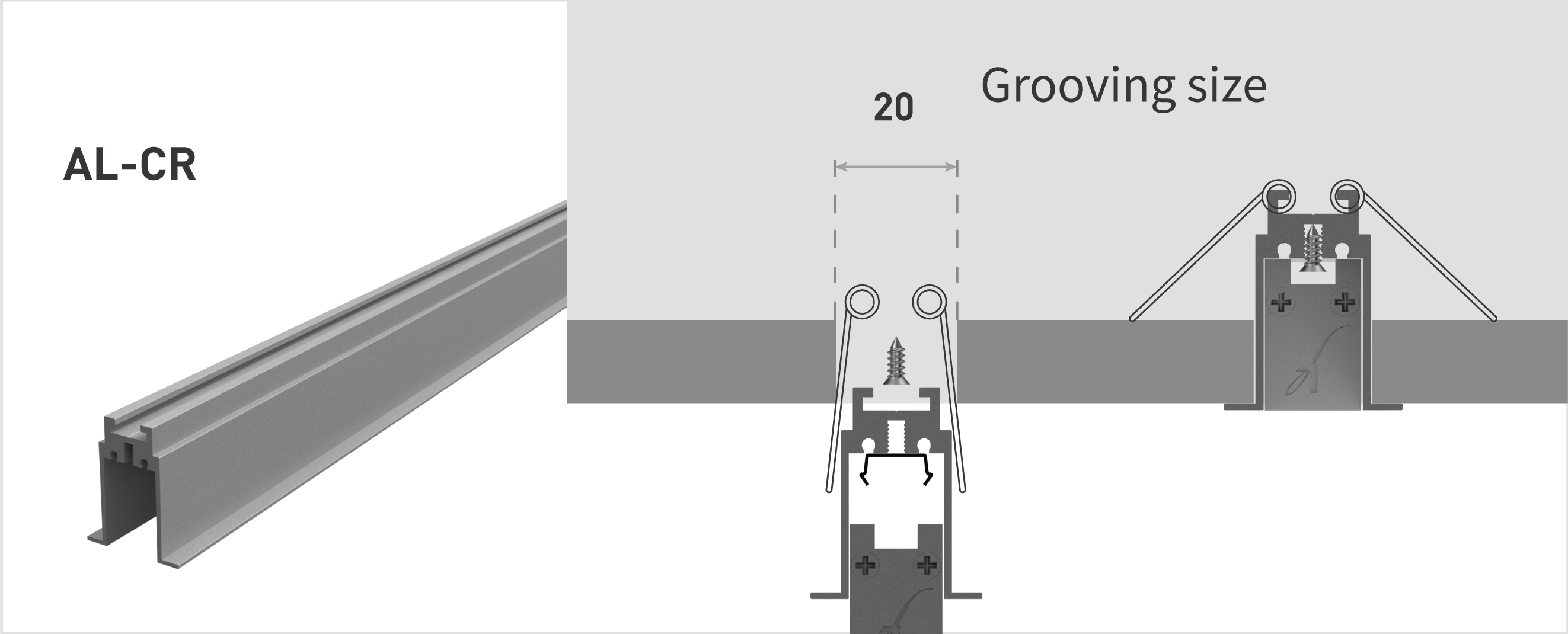

Accessories
